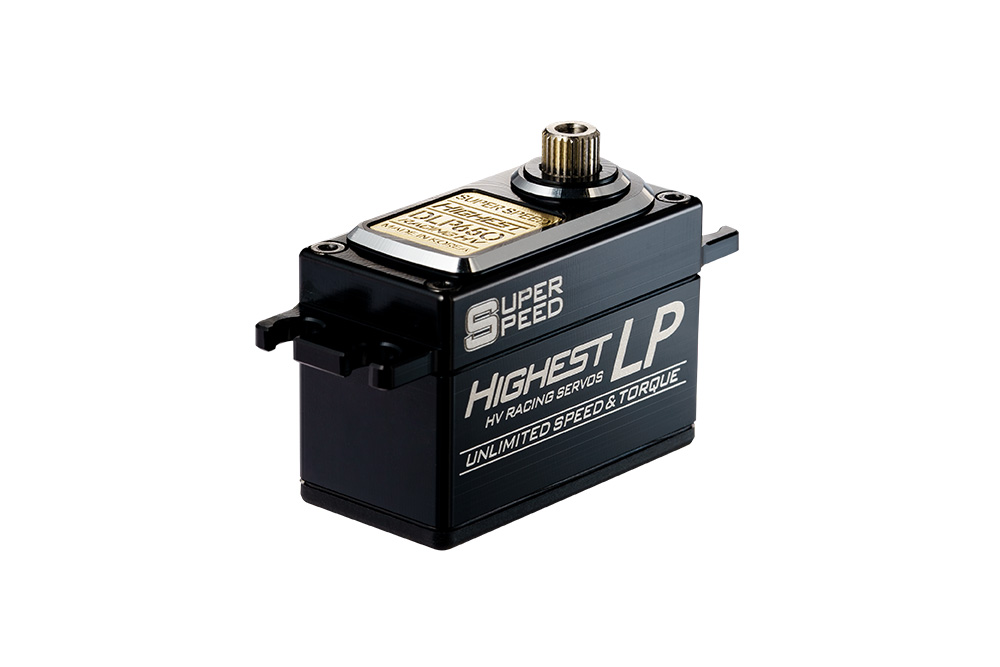

2016 IFMAR World Champion Servo
– Used by 2016 IFMAR World Champion, Ronald Voelker

￭ POWER SUPPLY
6.0V~7.4V

￭ Operating Temperature
14° to 140° F (-10 to +60° C)

￭ TORQUE
6.0V : 7.1 kg-cm
7.4V : 8.3 kg-cm

￭ SPEED
6.0V : 0.07 sec/60°
7.4V : 0.06 sec/60°

￭ SIZE
39.5 * 20.0 * 30.3 mm

￭ WEIGHT
54.5g

￭ FEATURE
32Bit MCU
Full Metal gears
AL Middle Heatsink Case + AL Top Case + Plastic Bottom Case
Output Shaft 25T
Dual Ball Bearing
High Efficiency Coreless motor
Sanwa SSR Mode Compatible
